SD4ft-Miner Results
The SD4ft-Miner is the subgroup discovery variant of the 4ft-Miner. It mines couples of rules — comparing how the same pattern behaves across two different subgroups of the data. This makes it particularly useful for identifying whether a relationship holds differently for distinct segments.

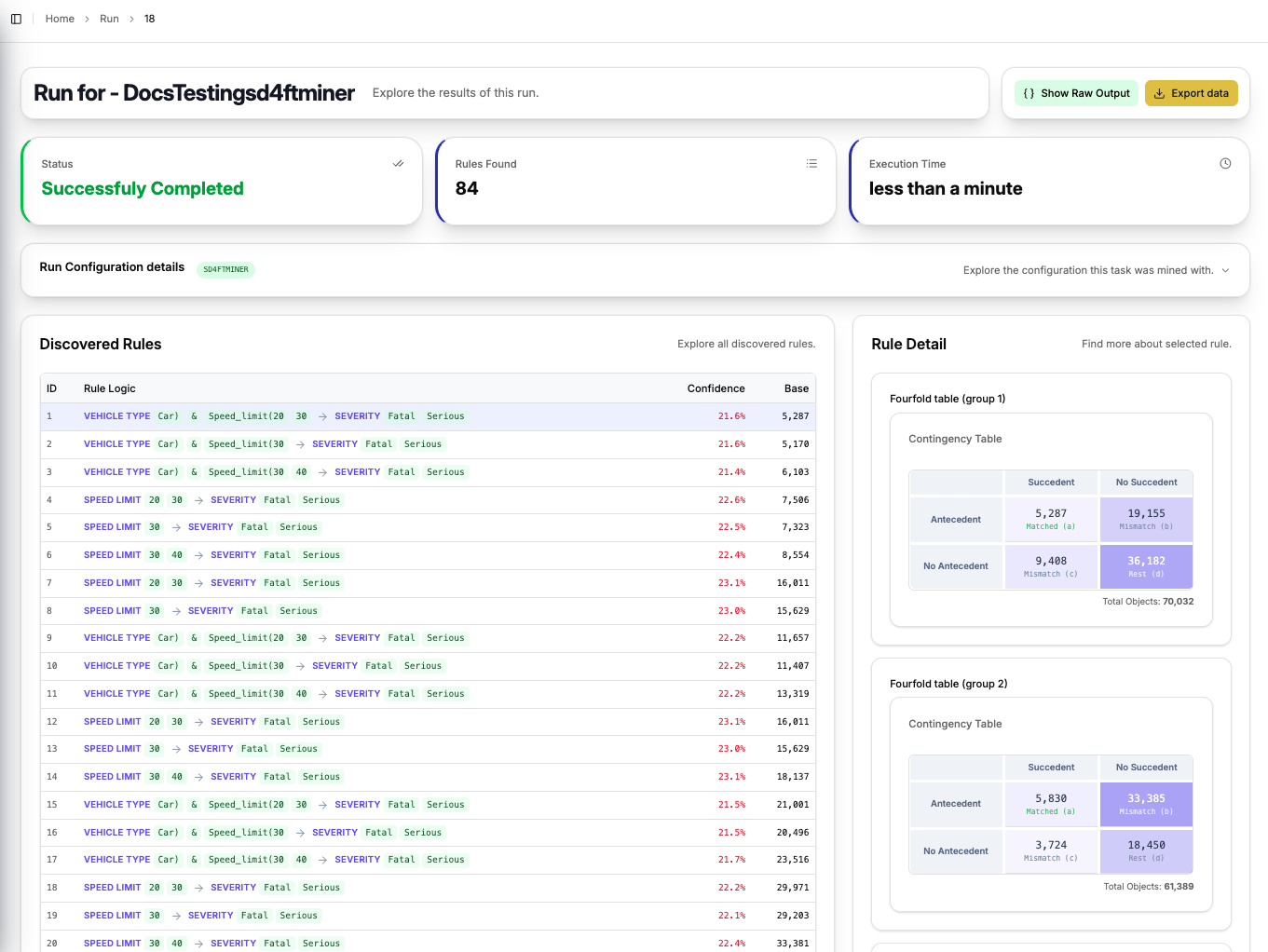

Run Summary
At the top of the page, three execution statistics are shown:
| Field | Description |
|---|---|
| Status | Whether the run completed successfully |
| Rules Found | Total number of rule couples discovered |
| Execution Time | How long the mining process took |
The Run Configuration Details section is collapsible and shows the full task configuration used for this run.
Discovered Rules
The left panel lists all discovered rule couples in a scrollable table. Each rule is displayed as a colour-coded logical expression using a colour scheme distinct from the 4ft-Miner, reflecting the different nature of the results. The table columns include:
- Rule Logic — the antecedent and succedent of the rule couple
- Confidence — the conditional probability for the rule, colour-coded by strength
- Base — the number of records matching the antecedent
Click any rule to load its detail in the right panel.
Rule Detail
Selecting a rule updates the Rule Detail panel with two fourfold tables — one for each of the two subgroups being compared.
Fourfold Table (Group 1) and Fourfold Table (Group 2)
Each table is a contingency table breaking down the subgroup's records into four cells:
| Succedent | No Succedent | |
|---|---|---|
| Antecedent | Matched (a) | Mismatch (b) |
| No Antecedent | Mismatch (c) | Rest (d) |
Comparing the two tables side by side reveals how the strength or direction of the rule differs between the two subgroups, which is the core analytical value of the SD4ft-Miner.
Exporting Results
Use the Export data button in the top right to download the full result set. The Show Raw Output button displays the raw JSON response from the CleverMiner engine.
